Polycarbonate Desiccator Mini

Description

  • With Spigot type : nozzle diameter 9mm

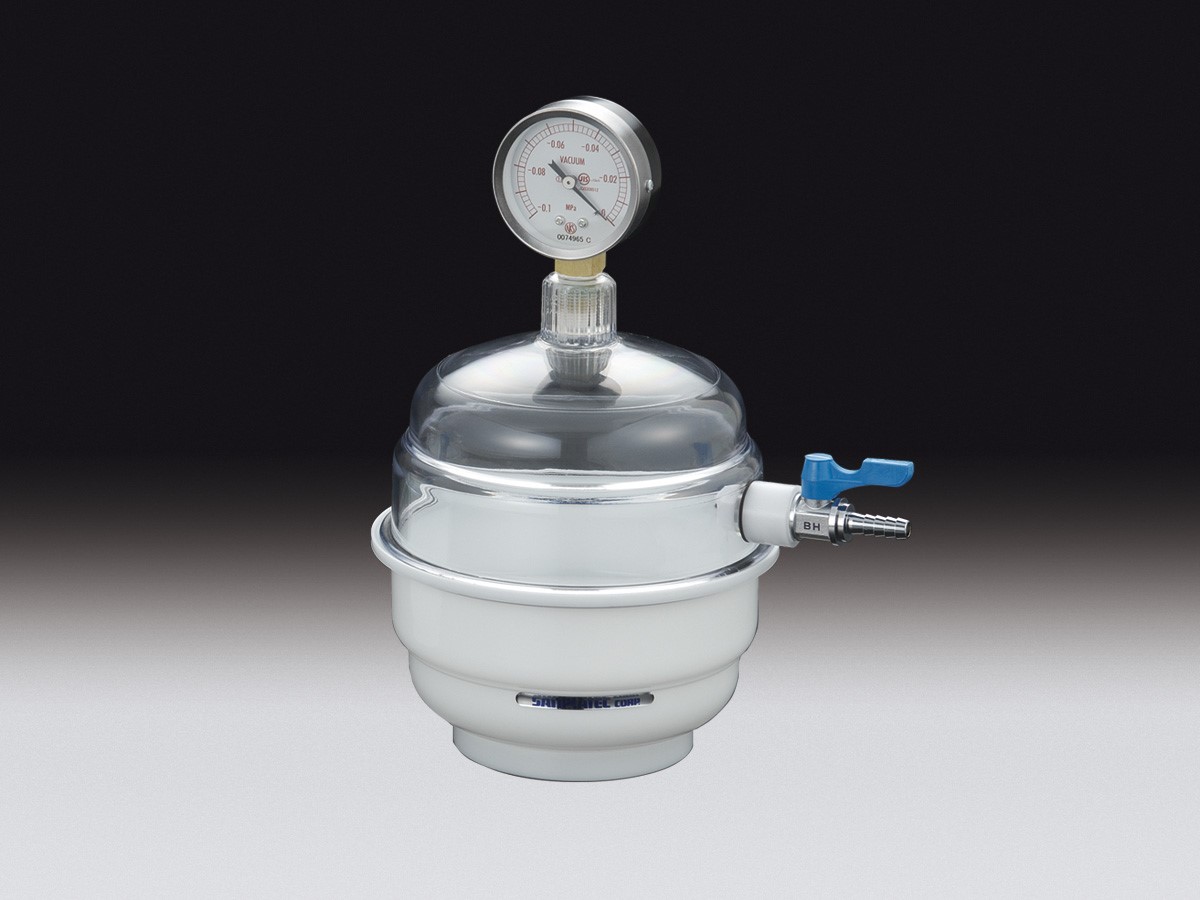

  • With vacuum gauge type includes a vacuum gauge for 0 ～－0.1MPa (min scale value 0.002MPa)
  • Each type has a thick perforated plate (φ140mm×3.2tmm). Disposable or reusable desiccants can be placed on or under this plate.
  • Dry seal type with O-ring.

    • Caution

    Specifications

    Catalog No.

    00240
    00241
    04707
    95001

    Model

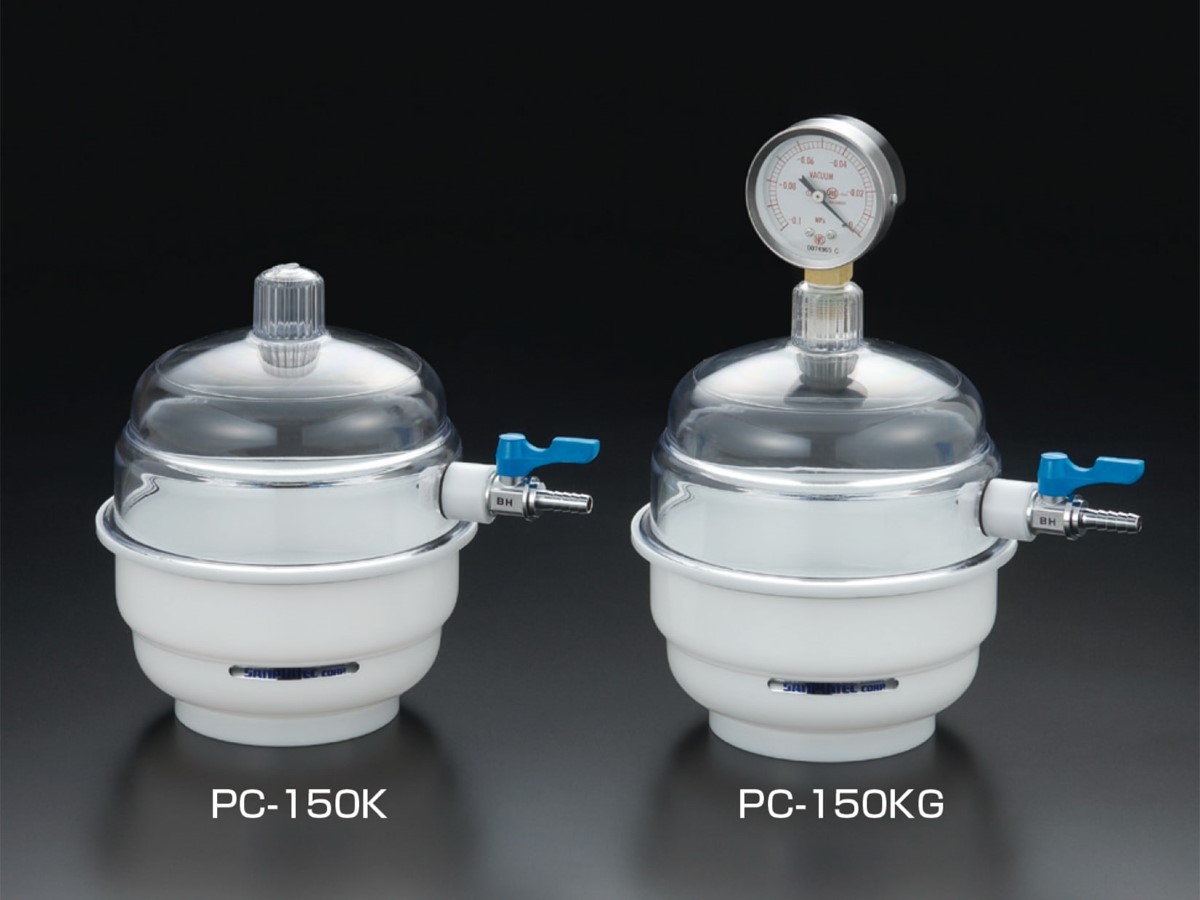

    PC-150K
    PC-150
    PC-150KG

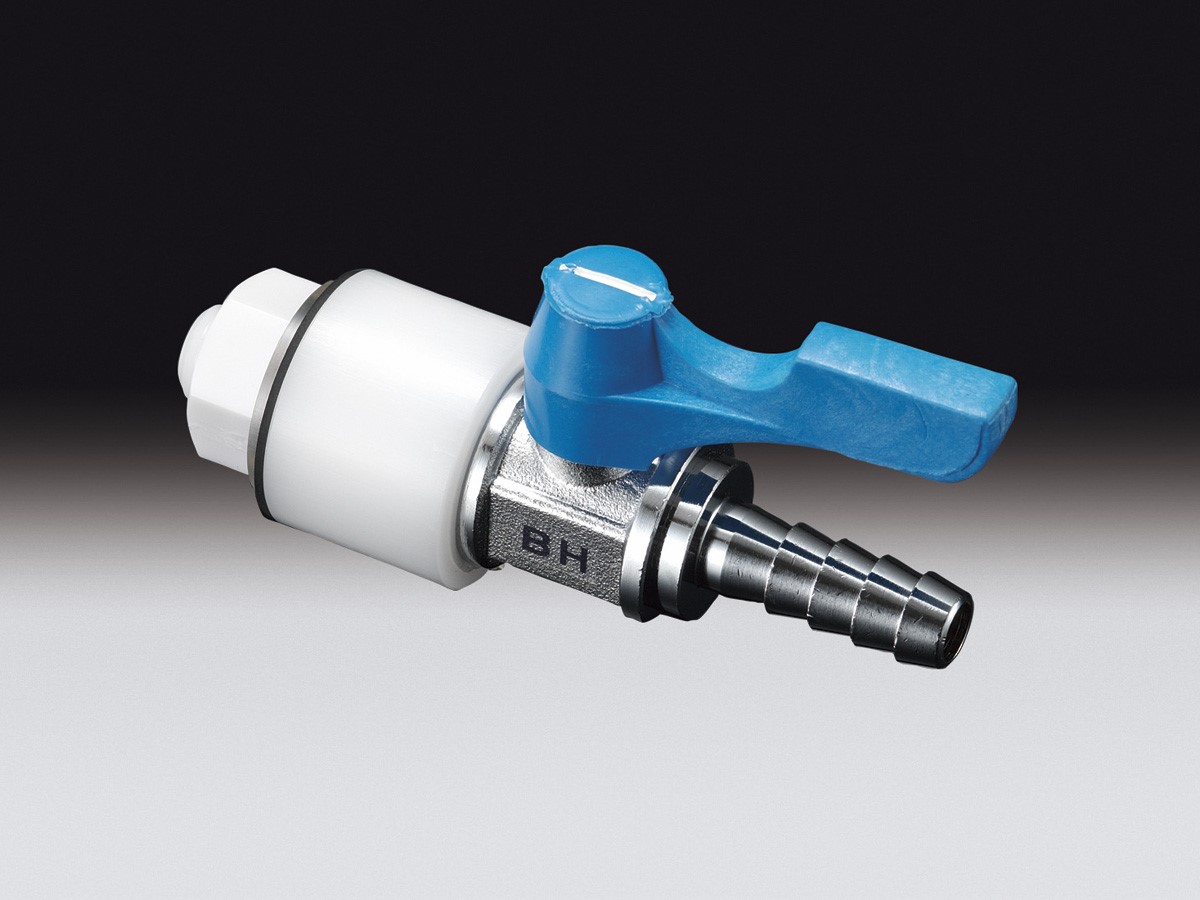

    Valve for PC-150・210・250

    Main body O.D（mm)

    φ172×206H
    φ172×206H
    φ172×281H

    Internal dimension (mm)

    140φ×125
    140φ×125
    φ140×H125

    Bore（mm)

    Body diameter×height（mm)

    Spec 1

    With spigot
    Without spigot
    With a stopcock and a vacuum gauge

    Spec 2

    Spec 3

    Spec 4

    Shelf（pc)

    Scale（mL)

    Material

    PC/PP
    PC/PP
    PC/PP

    Weight（Kg)
