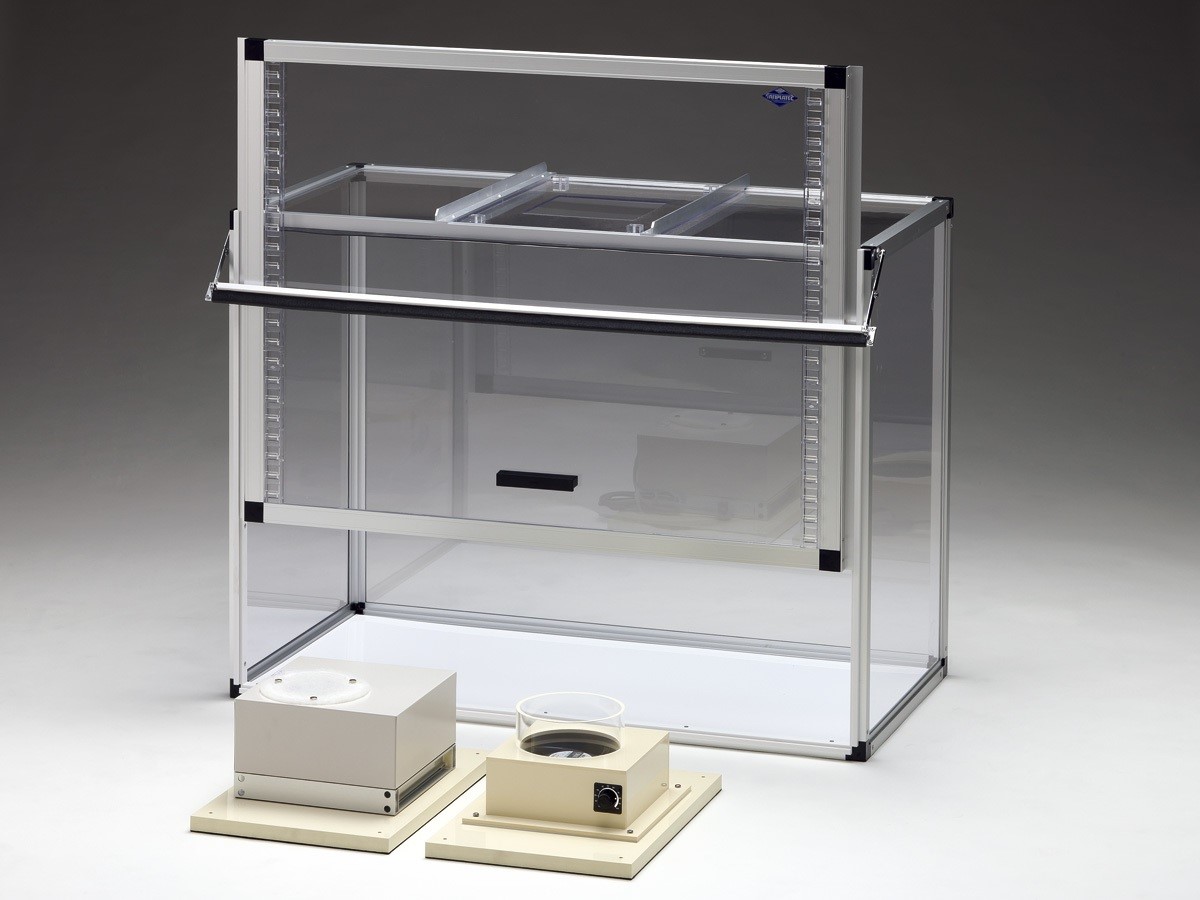

Formation Hood (Main Body)

Description

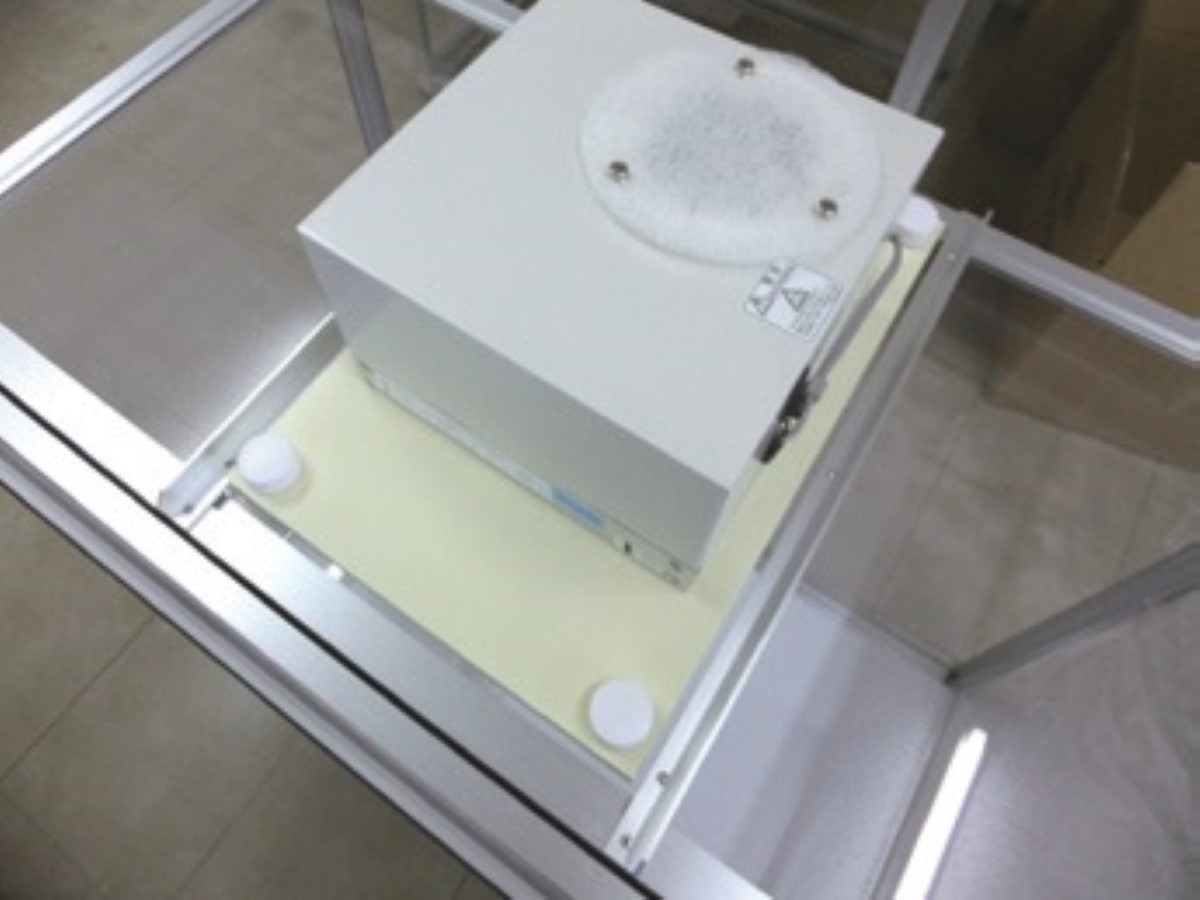

  • It can be used as a table top hood by installing a fan unit on the ceiling, or as a table top clean bench by installing a clean unit.

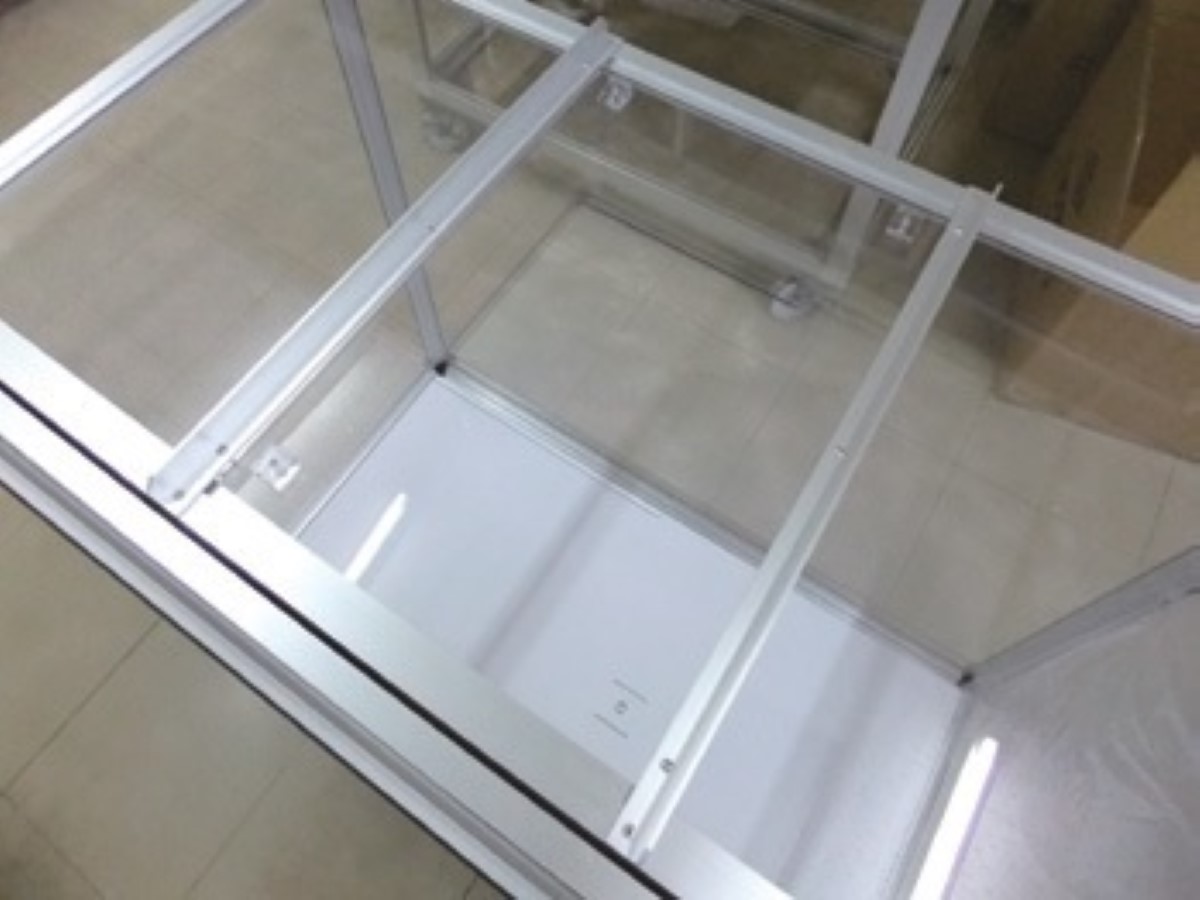

  • The ceiling has an opening for connection, so if you do not need the unit, please purchase a fitting for the formation hood (Code: 27902, 27903, 30112, 30113) and connect it.
  • It can also be used for Table Top Clean Bench and Table Top Hood.
  • To install the joint, simply fix it with screws.
  • Material: Frame/Aluminum, Panel (except bottom)/PVC transparent board, Bottom/ PVC white board
  • Fan unit and clean unit are sold separately from the main body

    • Caution

    Specifications

    Catalog No.

    26942
    26943
    26944
    26945

    Model

    F-500H
    F-700
    F-1000
    F-1000H

    Main body O.D（mm)

    500Wx500Dx750H
    700Wx500Dx500H
    1000Wx500Dx500H
    1000Wx500Dx750H

    Internal dimension (mm)

    Bore（mm)

    Body diameter×height（mm)

    Spec 1

    Spec 2

    Spec 3

    Spec 4

    Shelf（pc)

    Scale（mL)

    Material

    PVC/AL
    PVC/AL
    PVC/AL
    PVC/AL

    Weight（Kg)

    12.5
    12
    15
    18.5
