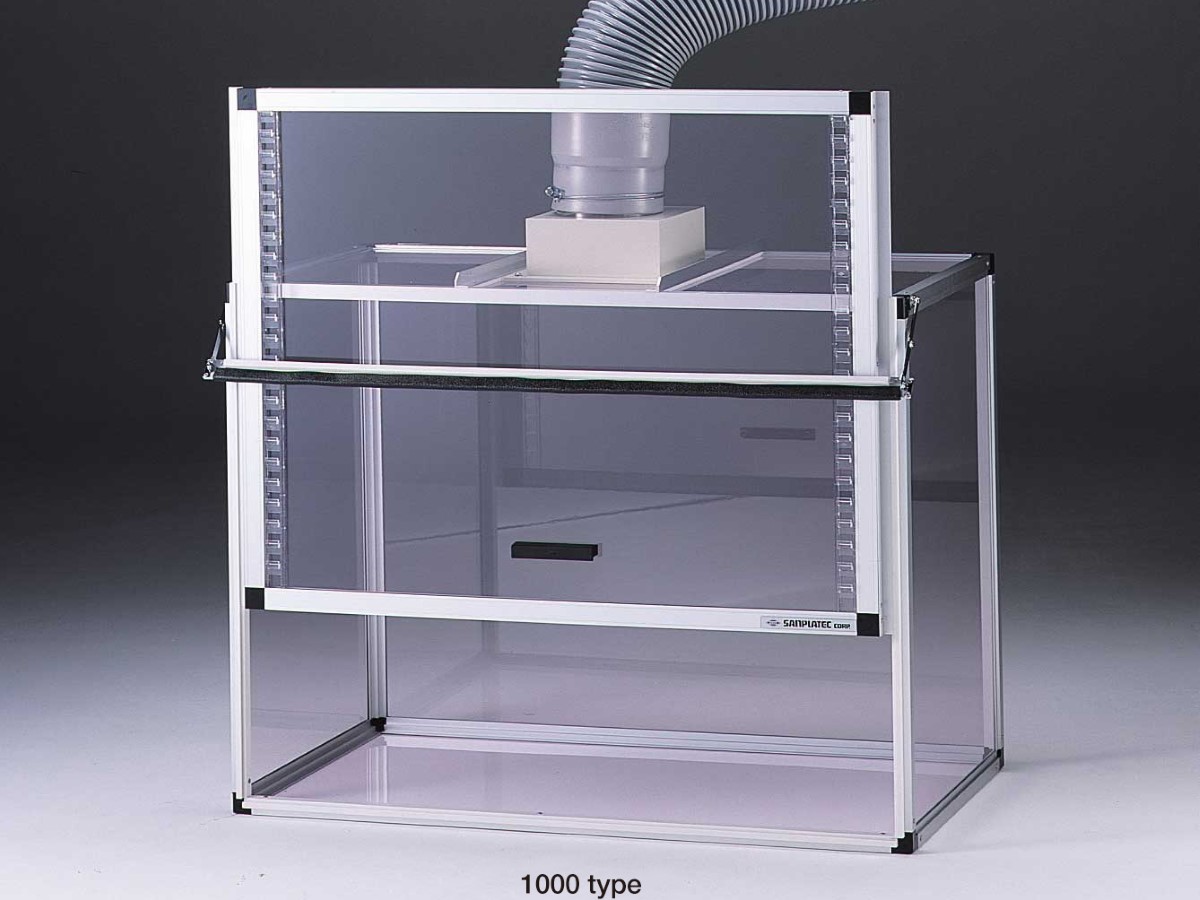

Table Top Hood
Description
●The sliding door is adjustable with a 28mm interval. The door setting is easy and safe with a ratchet structure.
●Can be installed on a laboratory table.
●Spec: aluminum frame, PVC clear: door, side, top, back
PVC white: bottom board
●AC fan: 2.8㎥ /min
●Accessory: 100φ×3m duct hose
Caution
●As metal is used partially such as fans, it is not resistant to corrosive chemicals.
Specifications
Catalog No.
00246
00247
00248
00249
26947
26948
Model
500H type
700 type
1000 type
1000H type
1 Model (Unit only)
2 Medel (Unit only)
Main body O.D（mm)
500W×500D×750H
700W×500D×500H
1000W×500D×500H
1000W×500D×750H
Internal dimension (mm)
Bore（mm)
Body diameter×height（mm)
Spec 1

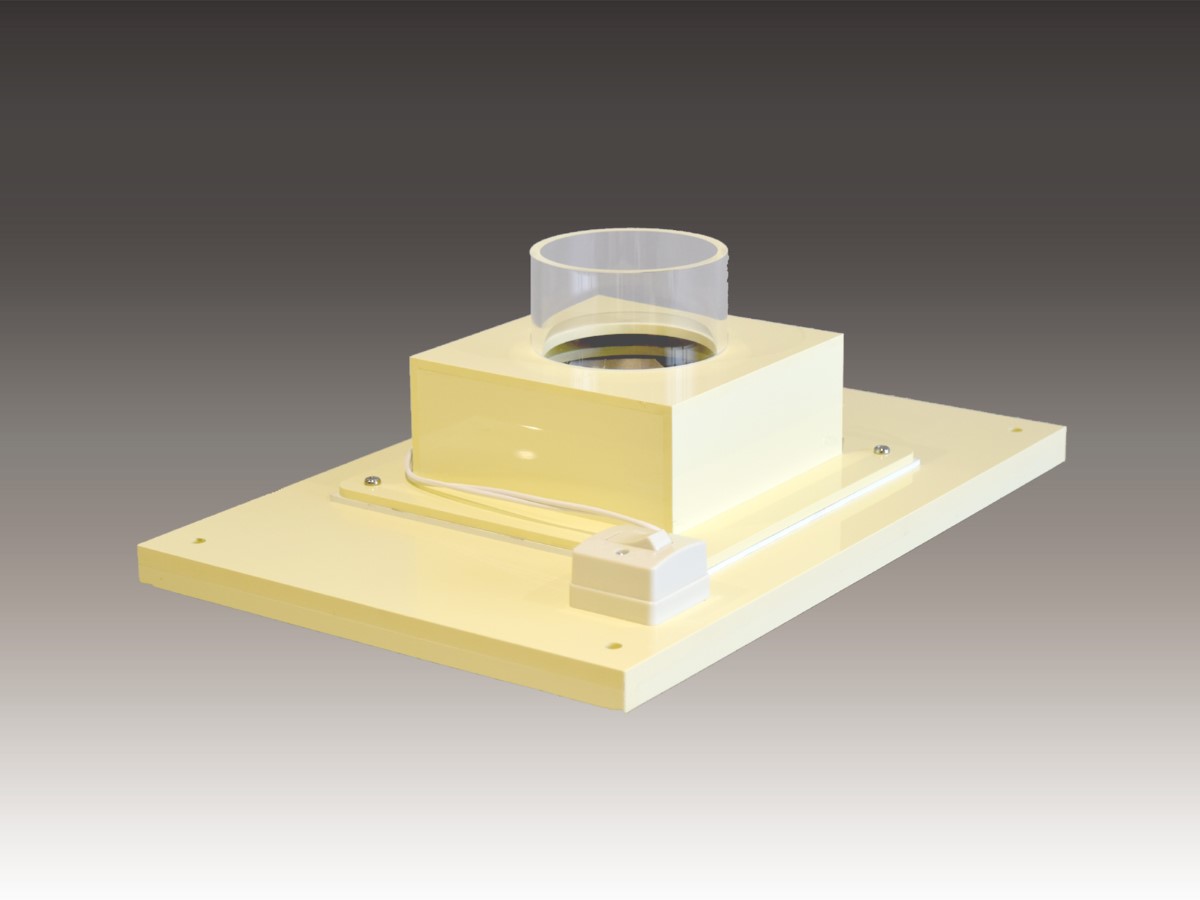

AC fan:2.8m³/min

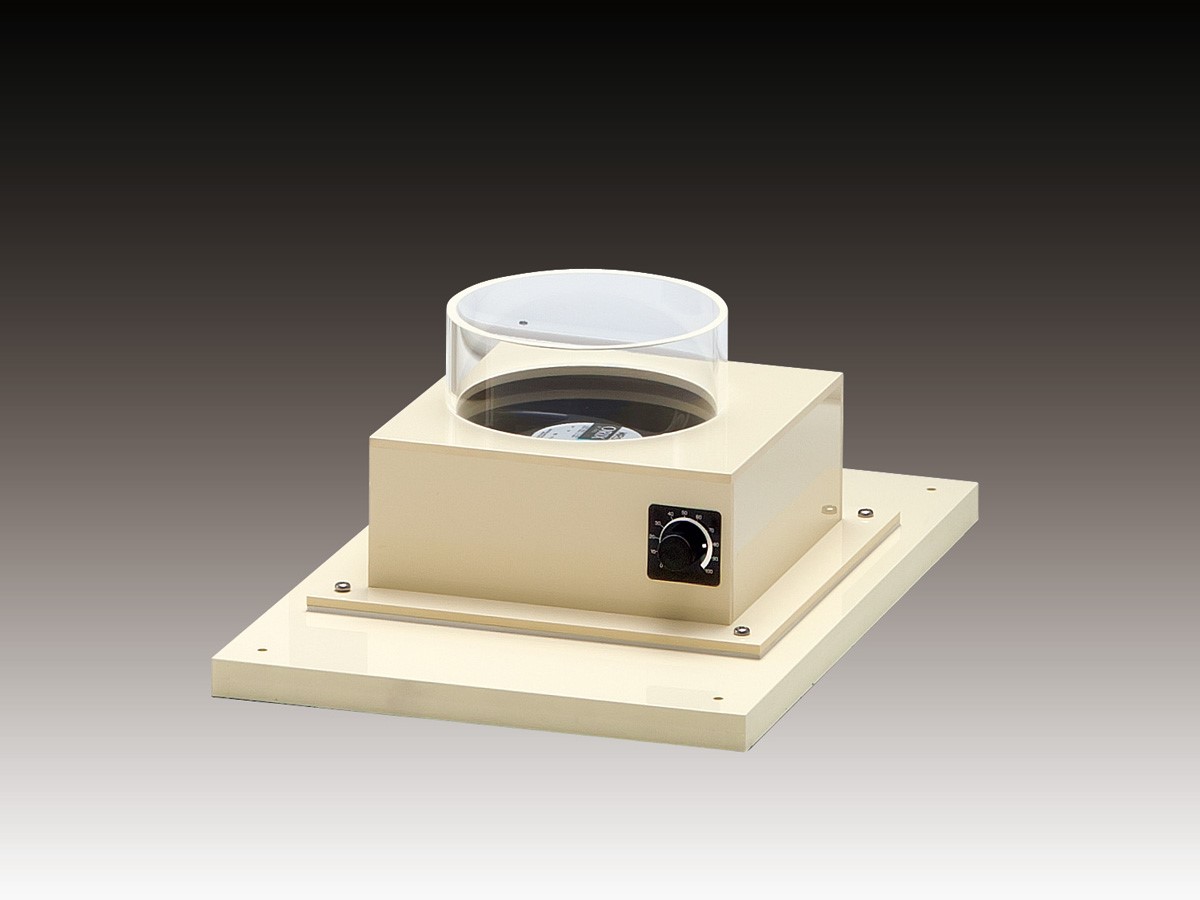

Air volume control (variable speed type) Max. air volume 6.2 m³/min
Spec 2
Spec 3
Spec 4
Shelf（pc)
Scale（mL)
Material
PVC/AL
PVC/AL
PVC/AL
PVC/AL
PVC/OTHER
PVC/OTHER
Weight（Kg)
16.5
16
19.5
23
